AR (Anti-Reflection) Coat Filter
CLAREX AR Coat Filter is treated with a multi-layer AR coating which prevents light reflection. Additional coatings prevent surface scratching and smudging.

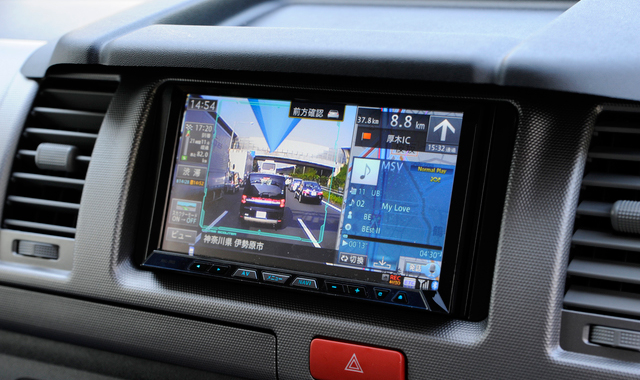

Product usage:Car navigation system (front panel)
Features
- Excellent Reflection Prevention.
- Excellent Light Transmission and optical characteristics.
- Excellent surface hardness and smudge resistance.
- Additional coatings prevent surface smudging.
- No birefringence or double refraction.
- Many kinds of substrate colors to choose from. (Color Matching is also available)
- Surface texture can be changed. (Flat/Glossy surface to Non-Glare surface texture)
Application
Optical Filters (Camera lens for mobile application, etc.) / Sensor Filters (Barcode scanner sensor, etc.) / Display Protection Window (LCD, VFD, OLED monitor, etc.)
Thickness
0.3mm~5.0mm
Initial Value
Properties | Measurement Value | Test Method (ASTM) |
---|---|---|
Total Light Transmittance (%) | 98 | D-1003 |
Reflectance (%) | 0.5(at550nm) | - |
Pencil Hardness | 6H | D-3363 |
Repellency | 110゜ | Contact Angle |
※ These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
(Spectral Transmission measured with NDH4000 Nippon Denshoku Industries Co., Ltd.)
Durability
Properties | Test Condition | Result |
---|---|---|
Heat Resistance | 85℃×250hr | No change in appearance |
Cold Resistance | -40℃×250hr | No change in appearance |
Thermal Shock | -40℃⇔Normal Temp⇔85℃ (300min x 200cycles) |
No change in appearance |
Moisture Resistance | 60℃×90%RH×250hr | No change in appearance |
※ These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
Chemical Resistance
Chemical Drop Test (24hrs on Anti-Smudge surface) |
Artificial Sweat (+) | ○ | No Change in appearance ○ Change in appearance △ |
---|---|---|---|
Artificial Sweat (-) | ○ | ||
Distilled Water | ○ | ||
Sea Water | ○ | ||
Strong Alkali | △ |
※ These are the measured value of CLAREX MHA 2100 001 2.0mm thickness sheet, and are not for guarantee.
Optical Data

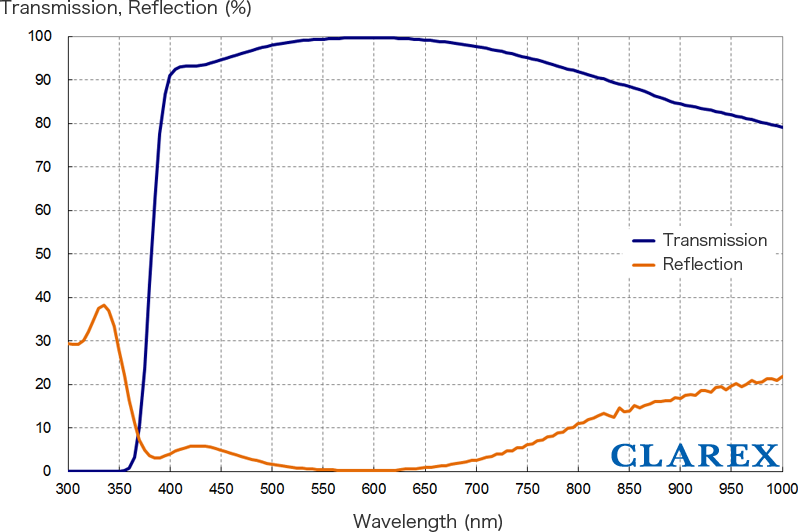

AR (Anti-Reflection) Coat Filter:MHA2100 001 (Both-side AR coat, One-side Anti Smudge)

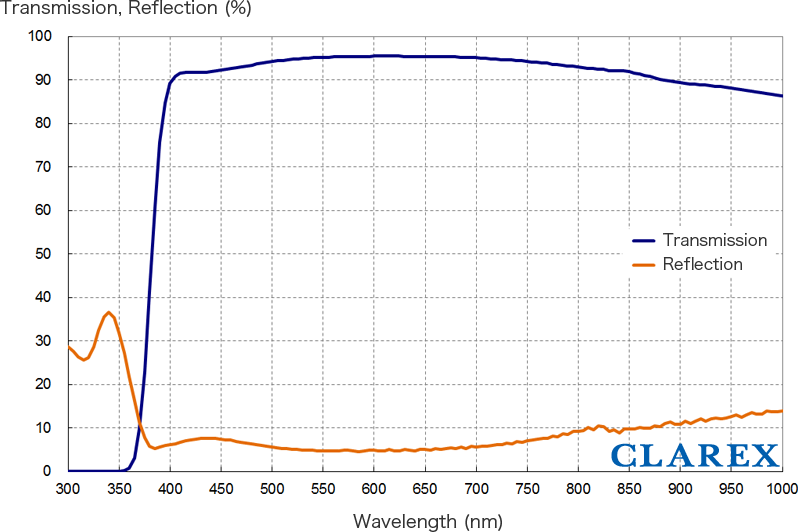

AR (Anti-Reflection) Coat Filter:MHA2000 001 (One-side AR coat, One-side Anti Smudge)
※ These are our experimental measured values in 1.0mm thick.
※ Value provided cannot be guaranteed in your application due to circumstances beyond our control.
Optical Data Download
CLAREX AR Coat Filter:MHA2100 001
CLAREX AR Coat Filter:MHA2000 001
※ For browsing method of PDF file, please click here.
About Product Handling
Please click here →「How to handle AR coat Filter」
