We propose a variety of customized products.

"Cell-Cast sheeting method" and "CLAREX Technology Platform" make it possible to propose variety of optically valued products.

CLAREX Cell-Cast Sheeting Method

Introducing the Cell-Cast Sheeting Method and its features.

Advantages and disadvantages comparing to other sheeting method like Extrusion method can also be found.

Features of Optical Grade Cell-Cast Acrylic Sheet

There are mainly 2 methods of producing PMMA sheet which is Cell-Casting and Extrusion method. And CLAREX / Nitto Jushi Kogyo Co., Ltd. adopts Cell-Casting method.

Production Method of PMMA Sheet (Cell-Casting)

General Comparison of Sheeting Method (Extrusion vs. Cell-Casting Method)

Here explains what is Cell-Casting method and its features, and advantages comparing to Extrusion method.

Cell-Casting Method	Cast "Liquid MMA" directly into Cell-Mold. (Batch Process) ⇒ Suitable for High-Mix/Low-Volume Production.
Extrusion Method	Put "PMMA Pellet" into the extruder and make it flat sheet. (Continuous Process) ⇒ Suitable for Low-Mix/High-Volume Production.

	Cell-Casting Method	Extrusion Method
Advantage	No. Double Refraction (No birefringence) - Suitable for optical sensor cover filter - High-Mix/Low-Volume - Color match and other customization - Higher Molecular Weight - better chemical resistance -	Shorter production lead-time and lower production cost because of continuous process. Easier to control thickness tolerance. Easy to make large size sheet.
Disadvantage	Longer production lead-time and higher production cost because of batch process. More difficult to control thickness tolerance.	Double Refraction (birefringence) in general. Not flexible in terms of customization - Low-Mix/High-Volume - Lower Molecular Weight.

CLAREX Technology Platform

We customize or develop many customer requested products by combining our original Technology Platform described below.

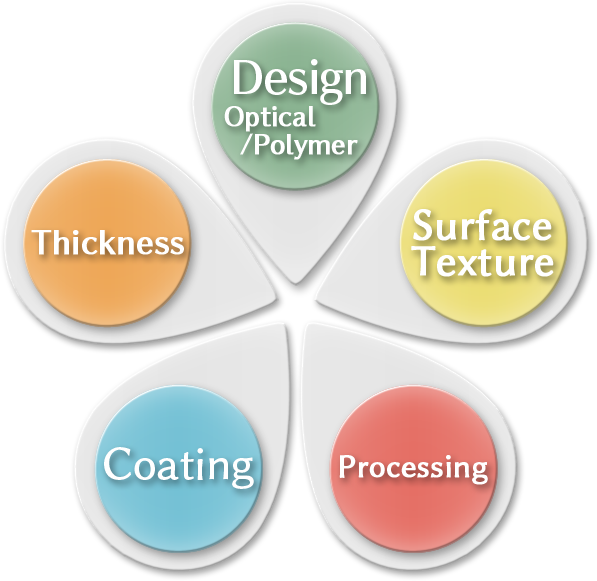

5 basic technologies

Design (Optical/Polymer)

Design Technique

Optical Design … (Ref: CLAREX Contrast Enhancement Technology)

Spectrum Control：UV / NIR / Laser Scanner Filter etc.
Light Distribution：HSOT LightGuide / Projection Screen etc.

Polymer Design

Heat Resistant PMMA / Low moisture absorption PMMA etc.

Thickness

Tickness Control (0.2mm～130mm)

CLAREX Precision Sheet : 0.2mm～5.0mm
CLAREX General Sheet : 2.0mm～130mm

Surface Texture

Highly Smooth & Flat Surface

Glass-like Ultra-Smooth Surface.

Many Non-Glare & Matt surface textures to choose from

One-Side Non-Glare (Matt)
Both-Sides Non-Glare (Matt)
You can choose different Non-Glare texture on one sheet.

Coating

Variety of single & multi-layer optical coating

Hard Coating / Scratch Resistant Coating (6H or over)
Anti-Reflection (AR) Coating / Mirror Coating
ITO Coating / EMI Shield
Anti-Bacteria (AB) Coating
Anti-Fingerprint Coating / Anti-Smudge Coating
IR-Cut Coating

Processing

From Material Production to Machine Processing

Cutting & NC routing (90°/ V ditch / mirror surface / etc.)
Printing (Silk Screen / etc.)
Mold Processing (Heat Bending / Blow / Press / etc.)
Lamination (UV / Heat / etc.)

If you have any inquiries or requests, please contact us.
